Product Details

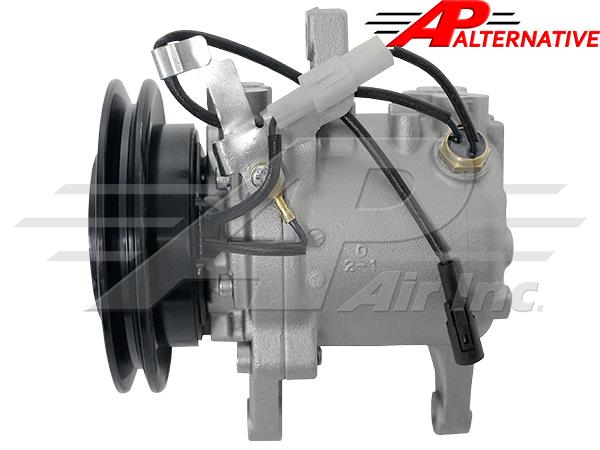

Alternative Denso Compressor SVO7E - 111mm, Single Groove Clutch, 12V

Alternative Denso Compressor SVO7E - 111mm, Single Groove Clutch, 12V

Alternative Denso Compressor SVO7E - 111mm, Single Groove Clutch, 12V

Item # 503-1823
Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

3.547 Lower Ear Outside Dimensions, 2.404 Lower Ear Inside Dimensions

Can use Heavy Duty Alternative Compressor - 503-182HD - Will Require Bracket Modification
Can use Original Denso Compressor - 503-182

Warranty Recommendation - Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.

OEM Numbers

3C581-97590, 3C581-50060

Specifications

COMPRESSOR TYPESVO7E
OIL TYPEND-Oil 8, Pag 46
CLUTCH DIAMETER111mm, 4.38"
VOLTAGE12
GROOVES1
BELT WIDTH.437, 7/16"
COIL POSITION10 o'clock
GAUGE LINE59mm, 2.32" Top Ear to Center of Groove
