Product Details

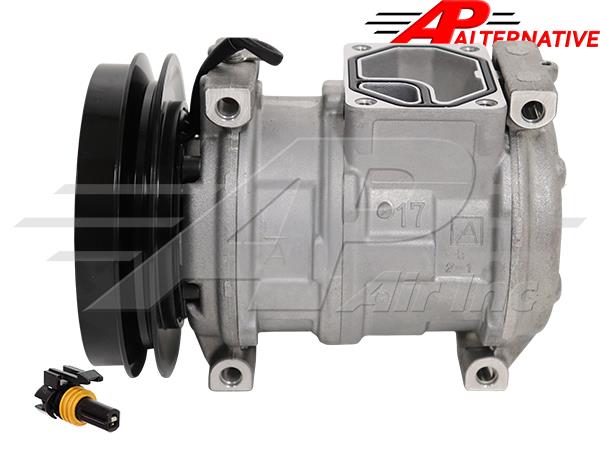

Alternative Denso Compressor 10PA17C - 146mm, 1Groove Clutch, 12V

Click for additional views

Alternative Denso Compressor 10PA17C - 146mm, 1Groove Clutch, 12V

Item # 503-1353

Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Must Use Original Manifold

Can Use Original Denso 503-135

OEM Numbers

RE46657

Specifications

COMPRESSOR TYPE	10PA17C
HEAD TYPE	N/A
OIL TYPE	R134 Pag Oil
CLUTCH DIAMETER	5.748", 146mm
VOLTAGE	12
GROOVES	1
BELT WIDTH	1/2"
COIL POSITION	N/A
OIL QUANTITY	230cc, 7.77oz.
GAUGE LINE	36 mm, 1.41"
