Product Details

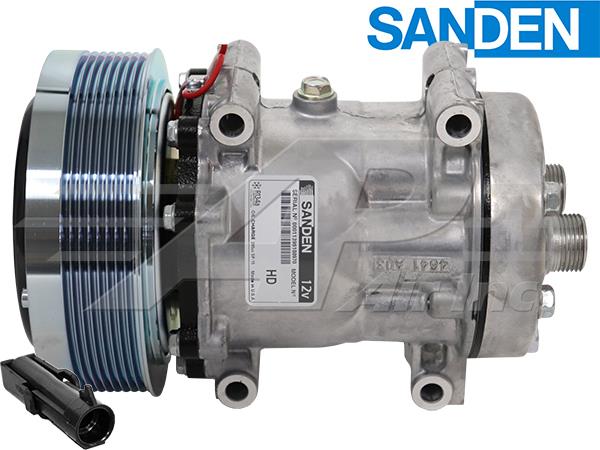

OE Sanden Compressor SD7H15HD - 152mm, 8 Groove Clutch 12V

Click for additional views

OE Sanden Compressor SD7H15HD - 152mm, 8 Groove Clutch 12V

Item # 509-603

Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Can use Alternative Compressor - 509-6033

OEM Numbers

00.0564.056.0, 869926288, 86993463, 317008A3, 47809628

Specifications

COMPRESSOR TYPE	SD7H15HD
HEAD TYPE	MD
OIL TYPE	R134 Pag Oil
CLUTCH DIAMETER	152mm, 5.98"
VOLTAGE	12
GROOVES	8
BELT WIDTH	Serpentine
COIL POSITION	N/A
OIL QUANTITY	285cc, 9.64oz.
GAUGE LINE	53.00C, 63.55F
