Product Details

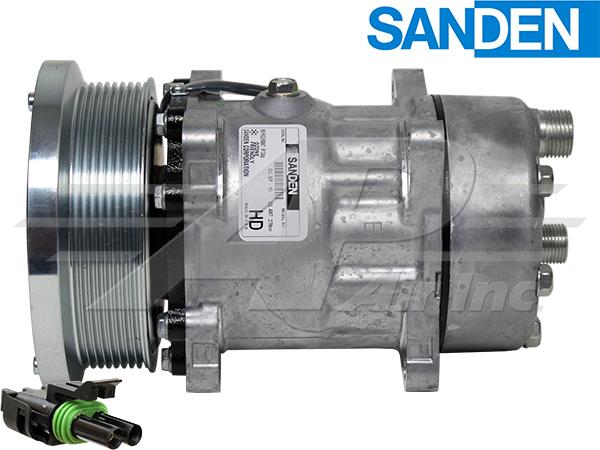

OE Sanden Compressor SD7H15 - 133mm, 8 Groove Clutch 12V

Click for additional views

OE Sanden Compressor SD7H15 - 133mm, 8 Groove Clutch 12V

Item # 509-551

Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

With Dust Cover
Can use Alternative Sanden Compressor - 509-5513

OEM Numbers

ABPN83304552, 20370293, 9824775, 85104531

Specifications

HEAD TYPE	KC
OIL TYPE	R134 Pag Oil
CLUTCH DIAMETER	133mm, 5.19"
GROOVES	8
BELT WIDTH	Serpentine
COIL POSITION	N/A
OIL QUANTITY	270cc, 9.13oz.
VOLTAGE	12
COMPRESSOR TYPE	SD7H15SHD
GAUGE LINE	34.00C, 46.00F

Related Items

Alternative Compressor SD7H15 - 133mm, 8 Groove Clutch 12V

509-5513

5.19" Clutch With 12V Coil, 8 Groove, 509-551 Compressor

600-9850

# 8 Hose Fitting O-Ring, 10pk

440-013

# 10 Hose Fitting O-Ring, 10pk

440-015

Sanden Sealed Clutch Dust Cover

440-621

Clutch Bearing for SD7H15, SD708, SD709, SD7B10, SD505, SD5H09, SD5H11, SD5H13, DK515CH, DK515BH (Small), DKS13S, DCW17D, TM Series

440-718

Sanden KC Rear Head, SD708, SD709, SD7H15 Horizontal 8 and 10 O-Ring

440-790

SD708, 709, SD7H15 With 4.70" Rear Head Diameter O-Ring, Gasket Kit

440-793

SD507, 508, 510, SD709CA, SD709CP, SD7B10, SD7, SD5H13, SD5H14, SD7H15, SD7V16, SP10 - Lip Type Shaft Seal Kit

440-993

Sanden Clutch Hub Puller With Bolts

530-810

Sanden Oil Level Dipstick

530-865

Deluxe Clutch Hub Puller and Installer Kit

530-91000
