Product Details

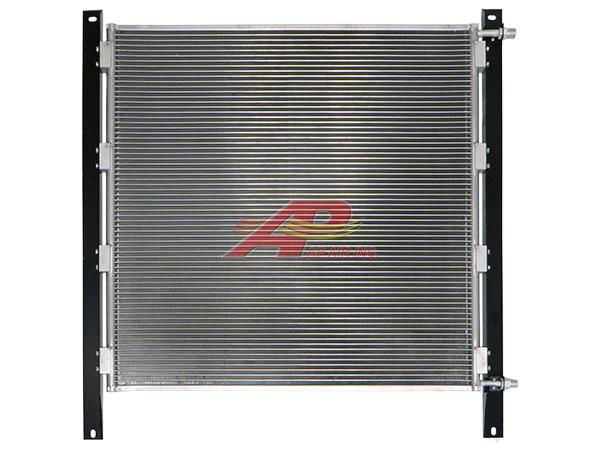

18-03809 - HD Peterbilt Condenser

18-03809 - HD Peterbilt Condenser

18-03809 - HD Peterbilt Condenser

Item # TC42627HD
Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Parallel Flow, Non-Serviceable Design

Improved Heavy Duty Condenser with Redesigned Mounting Brackets to Prevent Flexing/Twisting Caused from Vehicle Vibrations.

Mounts Full Length of Condenser using 4 HD Mount Blocks On Each Side For Additional Strength and includes HD Improved Upper & Lower Support Channels for Added Strength.

Can Use Heavy Duty Tube and Fin Design TC430281 or Standard Aluminum Parallel Flow Designed Condenser TC42627

OEM Numbers

F31-6097, 18-03809, 18-14015, PT41414P

Specifications

TYPEParallel Flow
CORE LENGTH26"
CORE HEIGHT27"
CORE WIDTH3/4"
OVERALL HEIGHT33 1/4"
OVERALL WIDTH32"
OVERALL THICKNESS3/4"
FITTING INLET#8 Male O-Ring
FITTING OUTLET#6 Male O-Ring
