Product Details

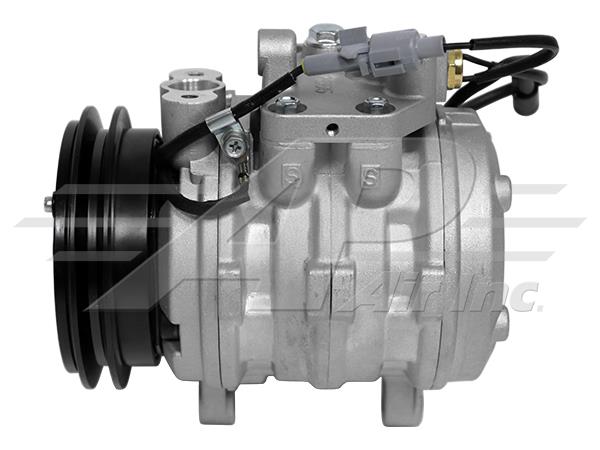

3C581-97590 - Heavy Duty 10P08E Compressor - Kubota

3C581-97590 - Heavy Duty 10P08E Compressor - Kubota

3C581-97590 - Heavy Duty 10P08E Compressor - Kubota

Item # 503-182HD
Contact AP Air for Pricing and Availability at (800) 806-5312

Item Information

Will Require Minor Bracket Modification

Can use Original Denso Compressor - 503-182
Can use Aftermarket Compressor - 503-1823

Warranty Recommendation - Condenser Replacement Is Required On Applications With Parallel Flow Style Condenser. Refer to Model For Required Condenser.

OEM Numbers

3C581-97590

Specifications

COMPRESSOR TYPE10PO8E
OIL TYPEND-Oil 8, Pag 46
CLUTCH DIAMETER4.35"
VOLTAGE12
GROOVES1
BELT WIDTH7/16"
GAUGE LINE59mm, 2.32" Top Ear to Center of Groove
